AccueilCubiclesPassthrough cubicle | 10 or 13 mm

Passthrough cubicle
10 or 13 mm


References : Stratifié massif 10 mm ou 13 mm

Print Print
Hygiene
10 or 13 mm SGL
pictogramme stratifié Very robust
pictogramme d'un marteau
Suitable for wet conditions
pictogramme d'une goûte d'eau Easy maintenance
pictogramme entretien facile





Suffixe passthrough cubicles have been designed to suit rooms where hygiene is a priority. Users enter from the front whith their shoes et go outside from the back without their shoes.

Our simultaneous closing system can close both doors at the same time. This improves user's privacy and is easy to use.

See specifications and overiew of a standard cubicle

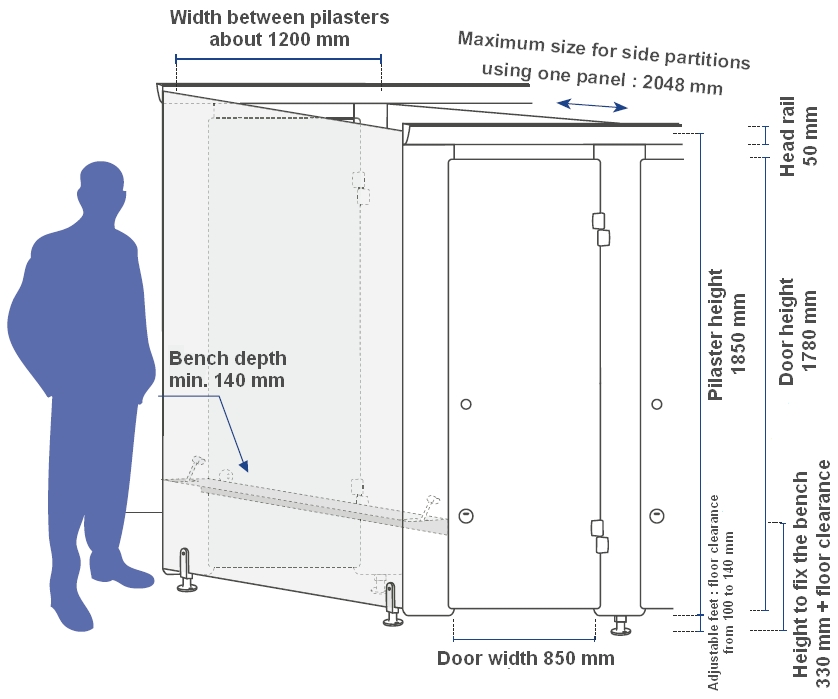

  STANDARD SIZES







Passthrough cubicle



Passthrough cubicle specifications :



Parts Illustrations Features
Doors, pilasters and side partitions pictogramme de la porte stratifie Doors, side partitions and pilasters : 10 or 13 mm solid grade laminate panels.
Doors and pilasters pictogramme de la porte et du meneaux de façade pour la cabine stratifie Doors are covering pilasters once installed. Rounded edges. Option : overlapping doors, no additional costs (Corail cubicles only)
Side partition Refends autoportant une seule pièce. Freestanding side partitions using one panel. Maximum depth : 2,05 m for standard cubicles and 1.85 m for comfort cubicles. Chamfered edges.
Head rail Aluminium enrobe de resine polyester cuite au four Made out of large section, 50 x 30 mm lacquered grey aluminium.
Hardware fittings etrier en inox laque gris Hardware fi ttings (3 U brackets and 4 angled brackets) grey lacquered stainless steel.
Adjustable foot Pied verin en nylon arme de ibre de verre

Adjustable foot from 100 to 140 mm.

Lock System Passthrough cubicle lock system

Simultaneous closing system of both doors using a lacquered stainless steel handle under the bench. Visible parts made of grey Nylon.

Doorknob bouton de porte 2 door knobs, fixed back to back on each door. Screwed internaly : invisible stainless steel screw. Clipped screw cover.
Screws visserie en inox Stainless steel screws (antitamper head).
Hinges Paumelle en nylon arme de fibre de verre, axe en laiton



Made of grey fiberglass Nylon. With or without spring back system.






Colour chart

Colour chart
